4.3 KW ON GRID SOLAR SYSTEM - MICROINVERTER IQ8
ELECTRICMART introduces 3.5 KW Customized solar power generating system using the world's latest technology in a solar panel called MONO PERC HALF CUT AC Solar Module.
A 3.5 kW solar system generates 14-16 units every day from morning 9 am to 5 pm which is sufficient to run Air conditioner along with Refrigerator, Television, Fans and lights during the day in a big house.

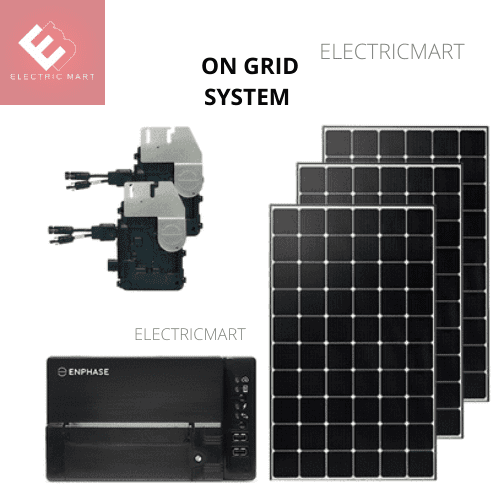

A solar system which works with the grid is called on-grid or grid-tied solar system, there are three components in this system, such as
- #1. Panels, (Mono- Perc)
- #2. Inverters, (Microinverters)
- #3. Installation Kit
- #4 Envoy Monitoring System

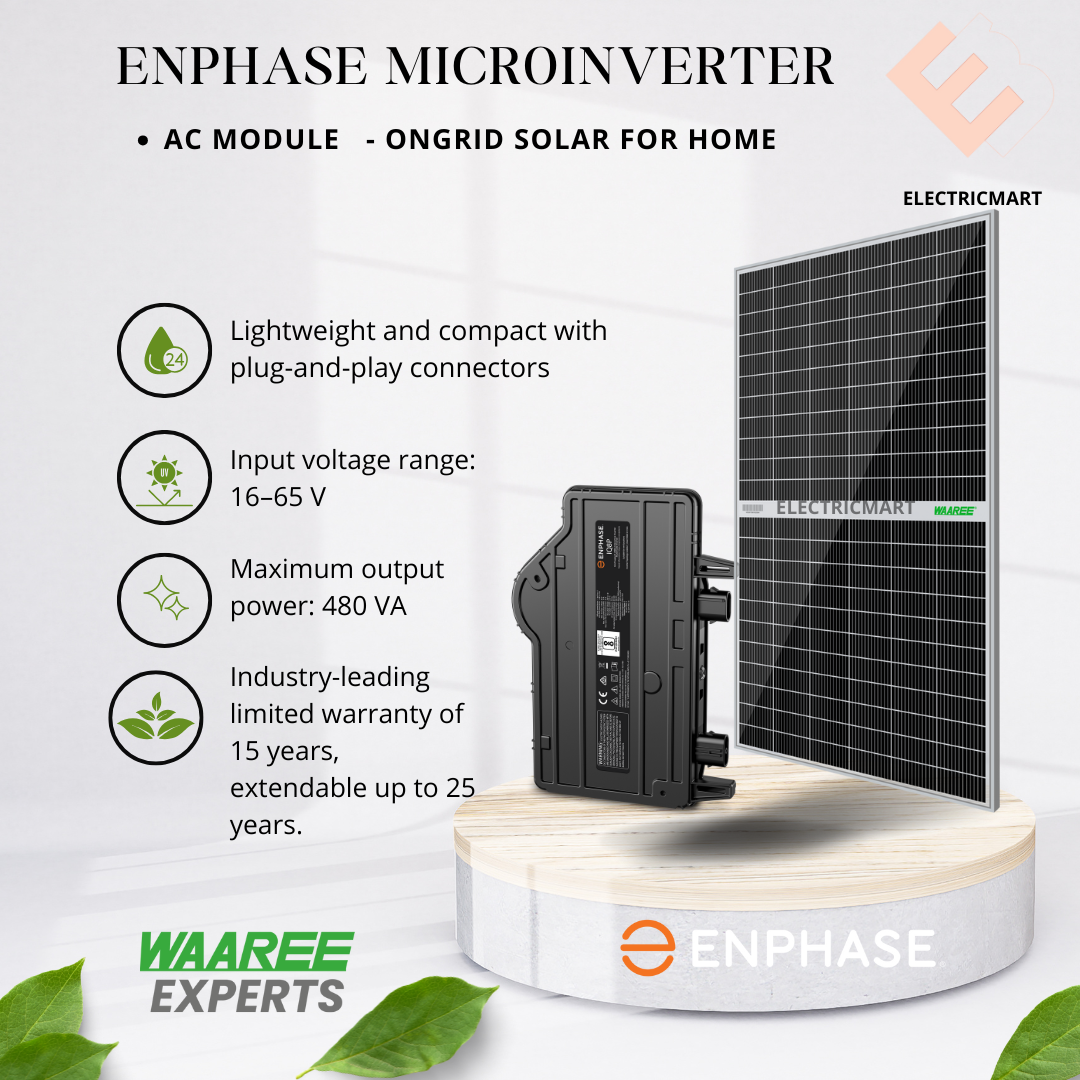

- Solar panel powered by enphase microinverter, with no single point of failure, and hence higher production.
- Burst technology that enables production even at low light and dusk conditions.
- Higher resistance against corrosion. Dustproof and waterproof microinverters.
- Safest system due to AC distribution structure, rather than DC structure of string inverter systems.
- Rapid shutdown technology will prevent system damage in case of grid failure.
- Warranty- 25 year warranty on panels, and micro inverters. 2 year warranty on Envoy.
Advantage :
- Generate power for your home and Export Excess electricity to TNEB.
- 4 years payback time and free electricity for next 20 years
Disadvantage :
- Does not come with backup, the system does not work when there is a power cut.
The complete Ongrid solar solution includes all neccesary components required for solar installations.
| Size of System | 4.3 KW Three phase |
| No. of panels | 08 (540) |
| No. of microinverters | 08H |
| No. of Envoys | 1 |
| No. of Current Transformers | 2 |
| No. of Q-cable drops | 08 |
| Envoy Online Monitoring system | 01 |
| Higher Module Efficiency, Higher Power | 20.1% Efficiency, 440 Wp+ |
| Max AC Output Power per Microinverter | 366 VA |
| Input Power | 350 - 460W |
| Min / Max Start Voltage | 33V / 58V |
| Microinverter CEC Efficiency | 97% |
Solar Panel | Mono perc Module - Half cut technology . |
Space required | 280 sq.ft. |
Panel size | Length – 6.9 feet, width – 3.4 feet |
Bos | ACDB , ACMCB , Earthing kit, AC Wire , DC Wire etc. |
Micro-Inverter | IQ 8H - 08 No's |
STANDARD INSTALLATION INCLUDED . GST INCLUDED.
