PACKAGE INCLUDES :
Component | Specification | Rating | Qty |

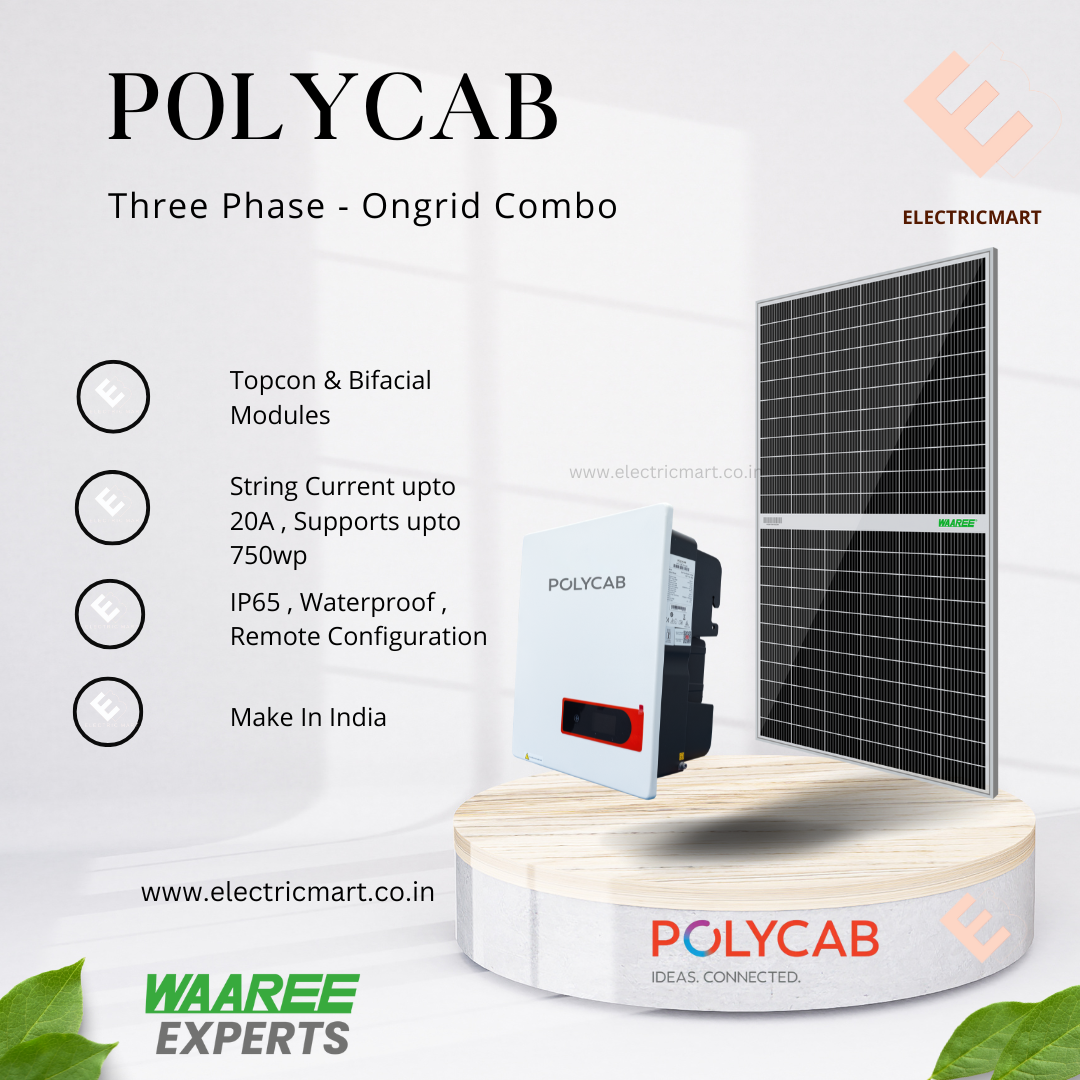

PV Module (Waaree / Vikram / Renewsys) | High Efficiency Solar Panel 575wp to 635wp Topcon N Type bi-facial | 575 Wp to 635wp | 8N |
Inverter ( Ongrid) | String Inverter Mppt /5Kw On-Grid Three Phase Inverter | 5kw - 3Phase | 1 |
Array Junction Box /DCDB | DC Fuse, DC SPD, Suitable gland & Connector in/out,IP-65 Enclosure | 5 kw-3 Phase 1 In/ 1 Out | 1 |
AC Distribution Box | 25A/32 A, MCB 1P,AC SPD,Suitable gland & Connectors In/Out, IP-65 Enclosure | 5 kw-1 Phase In/out | 1 |
DC Cable Polycab - EN standard | CU Unarmed,PVC indulated,UV Protected,1.1kv Polycab | 1C X 6 Sq.mm | 50 mtr |
AC Cable Polycab | CU Unarmed,PVC indulated,UV Protected,1.1kv - Polycab | 1C* 4 Sqmm | 50 mtr |
Lighting Arrestor* Excel | 1000 mm x 14mm dia,CU bonded 50 Micron with 5 Spikes and FRP base (Additional cost)* | Conventionals | 1 |
Earthing kit Excel | 1220 mm x 17.2mm dia cu coated 100/ 250 Microns 2 Electrode + Compound 10Kg - Excel Earthing | Chemical | 1Set |
MC-4 Connectors Elcom /Stabuli | M-F For Dc Cable Connections - ELCOM | 30 A | 2 Set
|
NOTE :
1) 1 KW requires - 80 Sq.feet and its Generates 4.5units/day (1kw) based on Climate.
2) Lightining arrestor - Extra , Civil work, Net meter fees not included.
3) Structure and Installation will be finalize after site survey* .
4) Workmanship Warranty: 2- 5 Years* by Electricmart
TEDA Authorized Installer.
Warranty: PV Module- 12 Years Product Warranty, 27 Years Power Output Warranty
Inverter - 7 Years Warranty*(Extendable)
📍 Installation & Delivery Information
Installation Service: Available within Chennai. For locations outside Chennai, installation will be managed through our authorized channel partners & dealers.
Delivery: Free delivery within Chennai. For orders outside Chennai, delivery will be arranged based on requirement and location.
📞 For Installation or Delivery Queries: Call / WhatsApp us at +91 94447 33147
⚠️ Disclaimer: Delivery timelines and installation charges may vary based on location and site requirements. Terms & conditions apply.
