6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES(MONO)
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES(MONO)
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES(MONO)
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES(MONO)
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES(MONO)
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES(MONO)
6KW OFF GRID SOLAR SYSTEM - HOME AND OFFICES

SOLAR OFF GRID COMBO - 5 KW (BIS CERTIFIED)

Non-returnable
Rs.345,000.00 Rs.472,000.00

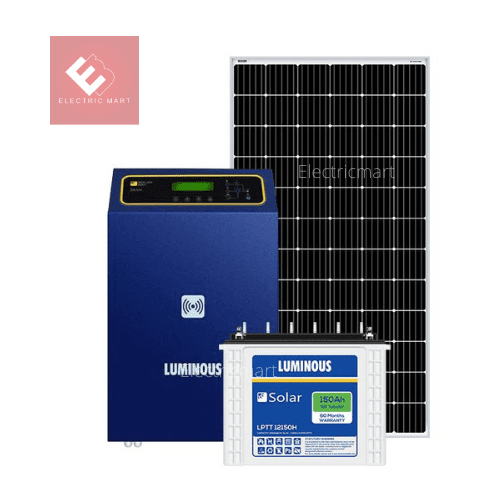

5 KW OFF GRID SOLAR SYSTEM  -  LUMINOUS SOLAR OFF GRID COMBO

Solar Panel - MONO PERC (24V)
  • Mono PERC  solar panel which is suitable for a wide range of applications. It comes with an additional back layer etching which helps the solar cells to absorb reflected or scattered sunlight which leads to increase in overall panel efficiency.
  • Solar PCU NXT+ 7.5 kVA /96V

  • Luminous Solar PCU NXT+ 7.5 kVA is a BIS certified solar PCU which is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.
  • Solar Battery - (150Ah)/12V

  • Luminous 150Ah solar battery is a BIS certified C10 rated deep cycle battery which is specially designed for longer back up. It comes with a very low maintenance requirement and can handle extreme weather conditions assisting to achieve high temperature performance.

  • NOTE : Government of India does not offer any subsidy on off grid solar systems.

    Choose Quantity
    + Add to Cart
    Product Details
    COMBO TECHNICAL DETAILS :

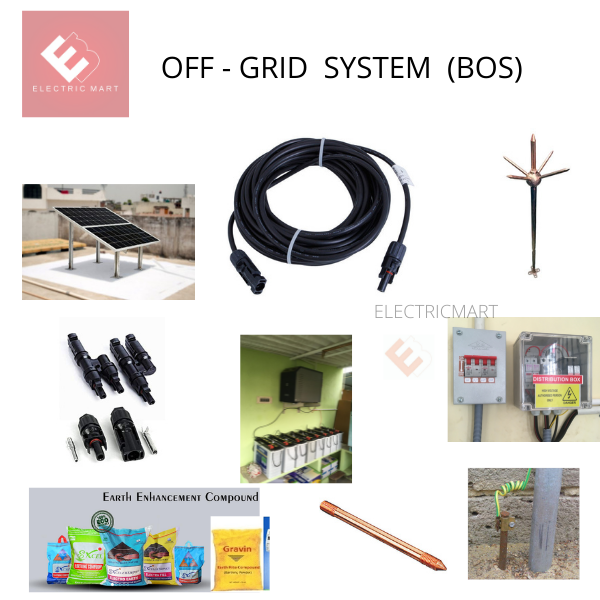

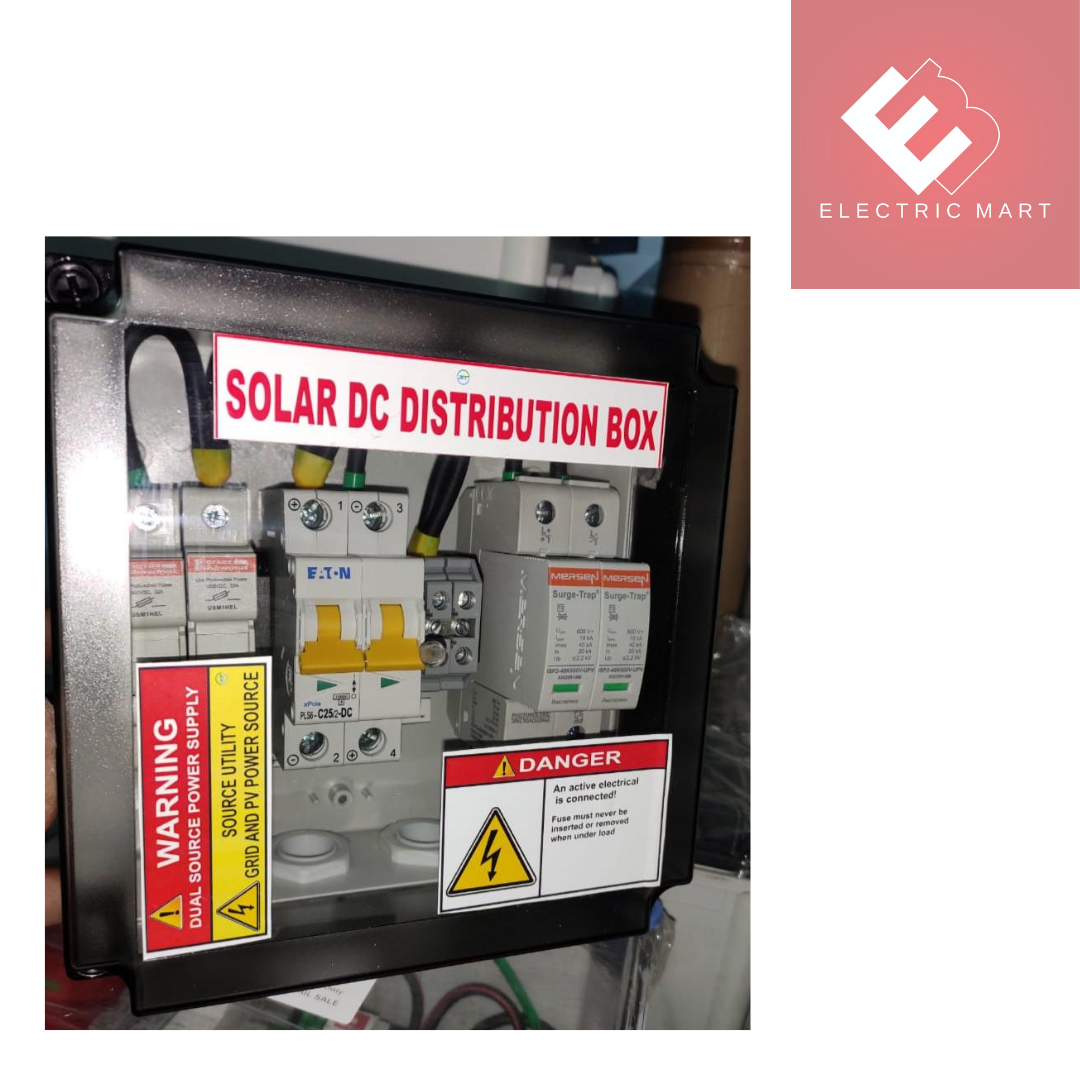

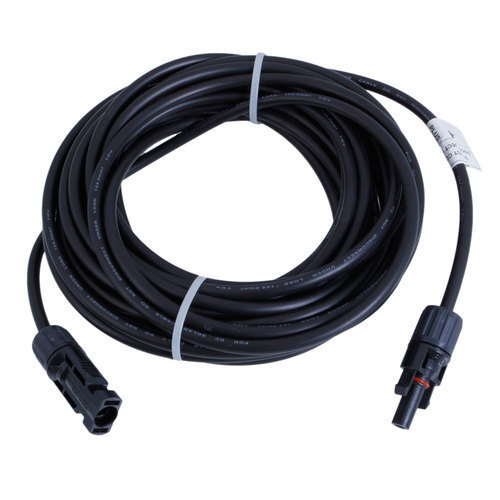

    THIS PACKAGE INCLUDES :  SOLAR PANEL(MONO-PERC) , SOLAR INVERTER , SOLAR BATTERY , DCDB , ACMCB/ACCO , MC4 CONNECTORS , DC CABLE , EARTHING KIT &  LIGHTINING ARRESTOR KIT.

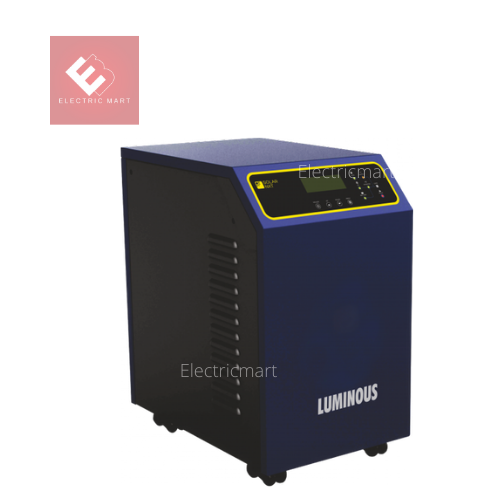

    Solar PCU – NXT+ 7.5 kVA   - 01No

  • Rated AC power - 230V (Single Phase)
  • Max Supported Panel Power - 6 kW
  • Input Voltage Range: Voc - 160V-240V (extracts upto 30% more power from Panels), Vmp - 120V-210V
  • Charge Controller - MPPT
  • Nominal Battery Bank Voltage - 96V (Supports 8 Batteries)
  • Pure Sine Wave Output

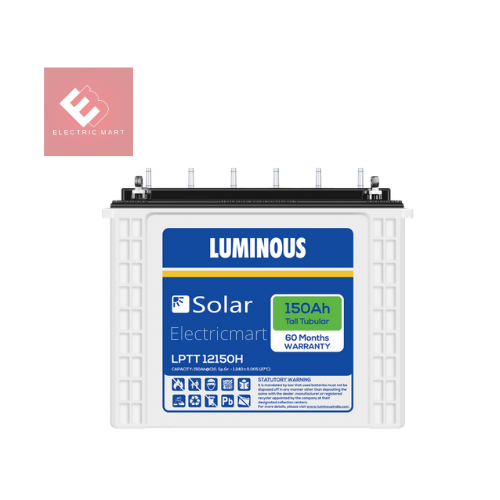

    Solar Battery - LPTT12150H (12V)

  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty - 60 Months
  • Tubular plate Technology - Next generation tall tubular battery with better charge acceptance and longer backup  (BIS CERTIFIED )
  • No of Batteries in Combo - 8

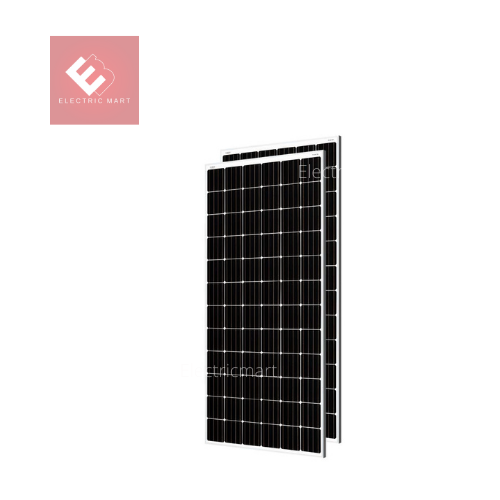

  • Solar Panel(24V)  -  12N

  • Capacity - 5kwp, 24V, Mono PERC Solar Panel
  • 25 years performance warranty.
  • No of Panels in the Combo - 12 Nos

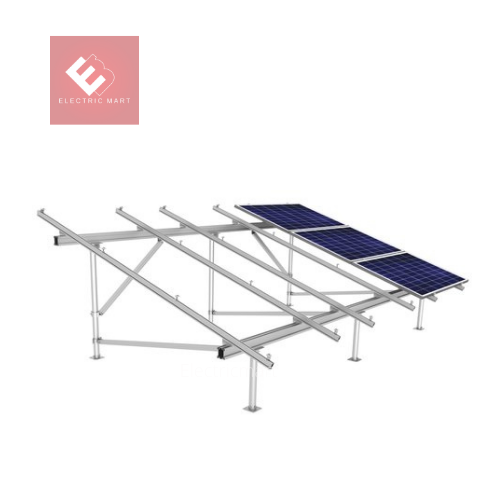

  • MOUNTING STRUCTURE  - CUSTOMER SCOPE                                                                                               INSTALLATION NOT INCLUDED IN THIS PACKAGE                                                                                    EARTHING  AND LIGHTINING ARRESTOR MUST FOR THIS COMBO PACKAGE                                      Note  : The given Cost doesn't included product installation.                                                            Installation Cost :Rs. 10000/kwp* With Installation Service (cost may vary as per the location and the scope of work)                                                                                                                                        Installation team available in : Chennai , Vellore , Cuddalore , Kanyakumari only)                                            For Details Related to Installation/ Transportation  Kindly Contact Our Sales Support :   9444733147.
