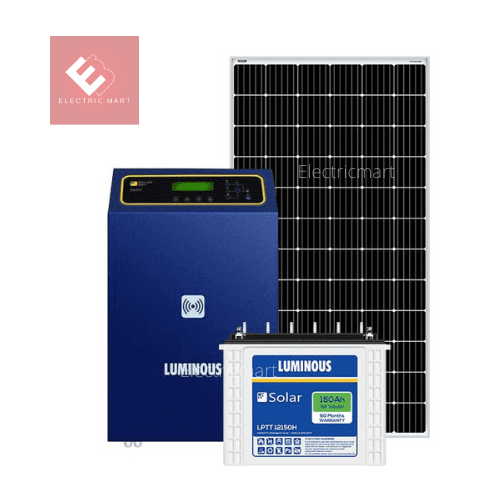

2 KW LUMINOUS OFF GRID SOLAR SYSTEM - MONO PERC
If you want, all your power equipment such as Fans, lights, Television, Refrigerator to be running on solar without using grid electricity, This solar system suites to you.
Product Details
MAIN PRODUCTS
1) SOLAR PANELS : MONOCRYSTALLINE ( MONO - PERC)
NO OF PANELS IN THIS COMBO - 04 NOS
25 YEARS PERFORMANCE WARRANTY.
2) SOLAR PCU INVERTER : 3.75KVA / 48V (SINGLE PHASE )
NO OF INVERTER IN THIS COMBO - 01 NOS
MAXIMUM SUPPORTED PANEL POWER - 2000Wp
CHARGE CONTROLLER - MPPT .
VA RATING - 3.75KVA
WARRANTY - 2 YEARS
3) SOLAR BATTERY : 150AH / 12V
NO OF BATTERIES IN THIS COMBO - 02 NOS
150AH RATED CAPACITY @C10, 12V
TALL TUBULAR BATTERY
WARRANTY 60 MONTHS
4) DC CABLES ( 50M ) , DCDB (01) , MC4 CONNECTORS(3 PAIR) , ACMCB /CHANGEOVER ETC.
5) EARTHING KIT INCLUDED
RUNNING LOAD : Connect Up to 2600 watts of power with combination of – 5 Ceiling Fans, 4-8 Led lights, 1 LEDTelevision, Refrigerator(SD), Wifi router ,Mixie and Laptop/Mobile Charging etc..
Max : 13Amps
BACKUP TIME CALCULATION :
1) 5 - 6 Hrs @ 1000w (Load )
2) 7 - 8 Hrs @ 800w (Load )
Note : The given Cost doesn't included product installation.
Installation Cost : 10000/kwp* With Installation Service (cost may vary as per the location and the scope of work)
(Installation available in : Chennai , Vellore , Cuddalore , Kanyakumari only)
For Details Related to Installation/ Transportation Kindly Contact Our Sales Support : 9444733147.
