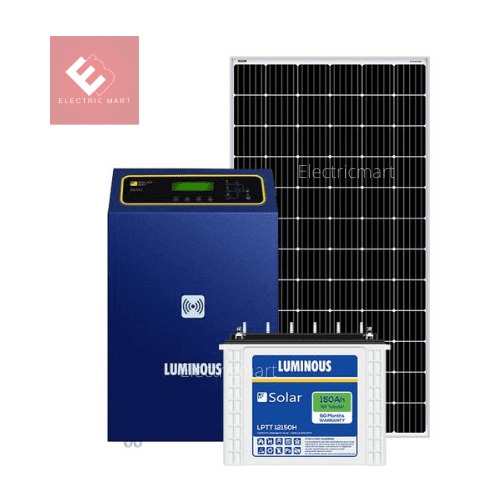

3 KW LUMINOUS OFF GRID SOLAR SYSTEM - MONO PERC
SOLAR POWER GENERATION SYSTEM - 2.5 KW WITH MONO PERC PANELS
10-12 units generation every day 260 sq feet rooftop space required for installation.
LUMINOUS 2.5 kw off grid solar system is India's best selling solar system designed to give 24*7 power in homes, Independent floors, Villas, offices. It is a powerful solar system that can run everything from solar, except 1.5ton, 2 ton air conditioners, Water Heater, 2hp motors etc..
Luminous Solar PCU NXT+ 3.75 kVA is a BIS certified solar PCU which is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.
If you want, all your power equipment such as Fans, lights, Television, Refrigerator to be running on solar without using grid electricity, This solar system suites to you.
NOTE : Government of India does not offer any subsidy on off grid solar systems.
1) SOLAR PANELS : MONOCRYSTALLINE ( MONO - PERC)
- NO OF PANELS IN THIS COMBO - 06 NOS
- 25 YEARS PERFORMANCE WARRANTY.
2) SOLAR PCU INVERTER : 3.75KVA / 48V (SINGLE PHASE )
- NO OF INVERTER IN THIS COMBO - 01 NOS
- MAXIMUM SUPPORTED PANEL POWER - 3000Wp
- CHARGE CONTROLLER - MPPT .
- VA RATING - 3.75KVA
- WARRANTY - 2 YEARS
3) SOLAR BATTERY : 150AH / 12V
- NO OF BATTERIES IN THIS COMBO - 04 NOS
- 150AH RATED CAPACITY @C10, 12V
- TALL TUBULAR BATTERY
- WARRANTY 60 MONTHS
4) DC CABLES ( 50M ) , DCDB (01) , MC4 CONNECTORS(3 PAIR) , ACMCB /CHANGEOVER ETC.
5) EARTHING KIT INCLUDED
RUNNING LOAD : Connect Up to 2600 watts of power with combination of – 5 Ceiling Fans, 4-8 Led lights, 1 LEDTelevision, Refrigerator(SD), Wifi router ,Mixie and Laptop/Mobile Charging etc..
Max : 13Amps
BACKUP TIME CALCULATION :
1) 5 - 6 Hrs @ 1000w (Load )
2) 7 - 8 Hrs @ 800w (Load )
Note : The given Cost doesn't included product installation.
Installation Cost : 10000/kwp* With Installation Service (cost may vary as per the location and the scope of work)
(Installation available in : Chennai , Vellore , Cuddalore , Kanyakumari only)
For Details Related to Installation/ Transportation Kindly Contact Our Sales Support : 9444733147.
