LUMINOUS OFF GRID SOLAR COMBO - 5 KW(MONO) BIS CERTIFIED
Non-returnable
Rs.368,000.00 Rs.542,000.00

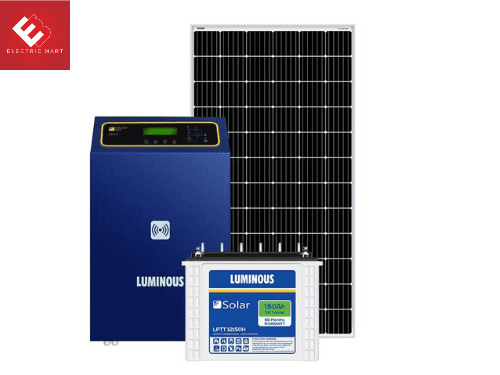

SOLAR POWER GENERATION SYSTEM - 5 KW /48V WITH MONO PERC PANELS
28-30 units generation every day 700 sq feet rooftop space required for installation.
LUMINOUS 5 kw off grid solar system is India's best selling solar system designed to give 24*7 power in homes, Independent floors, Villas, offices. It is a powerful solar system that can run everything from solar, like Light, Fan, LED TV , 1.5ton, air conditioners, Water Heater, 1.5hp motors etc..
If you want, all your power equipment such as Fans, lights, Television, Refrigerator to be running on solar without using grid electricity, This solar system suites to you.
NOTE : Government of India does not offer any subsidy on off grid solar systems.
Choose Quantity
Product Details
MAIN PRODUCTS
1) SOLAR PANELS : MONOCRYSTALLINE ( MONO - PERC)
- NO OF PANELS IN THIS COMBO - 12 NOS
- MONOCRYSTALLINE PERC HALF CUT PANELS
- 25 YEARS PERFORMANCE WARRANTY.

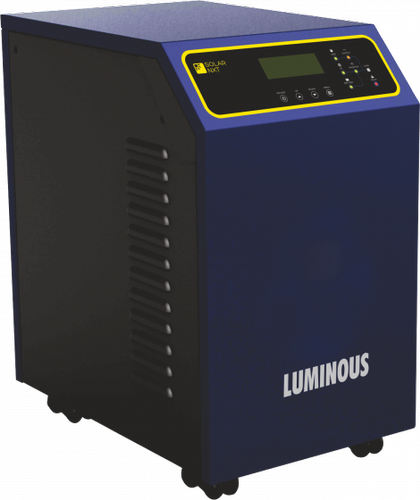

2) SOLAR PCU INVERTER : 5KVA / 48V (SINGLE PHASE )
- NO OF INVERTER IN THIS COMBO - 01 NOS
- MAXIMUM SUPPORTED PANEL POWER - 5000Wp
- CHARGE CONTROLLER MPPT .
- VA RATING - 5 KVA/48V
- WARRANTY - 2 YEARS

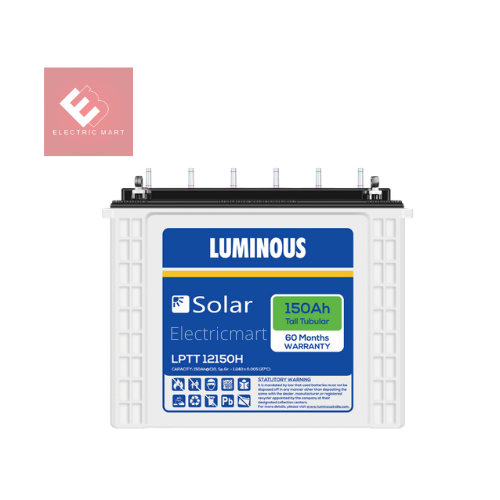

3) SOLAR BATTERY : 150AH / 12V
- NO OF BATTERIES IN THIS COMBO - 4 NOS
- 150AH RATED CAPACITY @C10, 12V
- TALL TUBULAR BATTERY
- WARRANTY 60 MONTHS
4) MOUNTING STRUCTURE - CUSTOMER SCOPE* OR CALL SALES SUPPORT FOR CUSTOMIZE

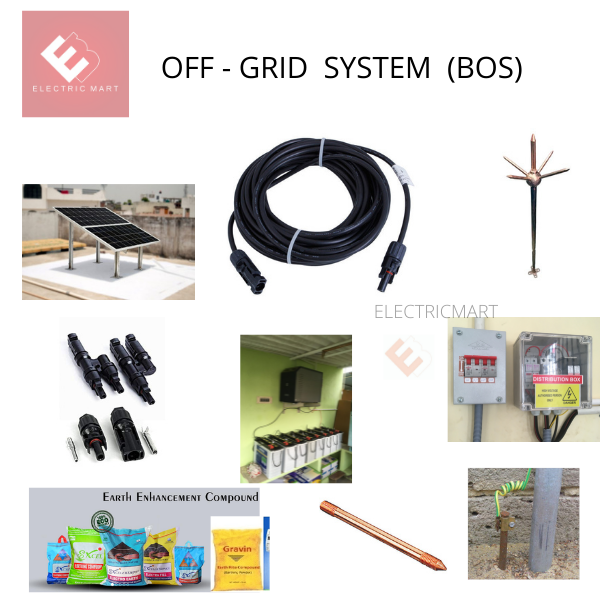

5) BOS : DC CABLES(50M) , DCDB (1) , ACMCB SET (1) MC4 CONNECTORS.
6) EARTHING KIT AND LIGHTINING ARRESTOR ROD INCLUDED.
EARTHING AND LIGHTING ARRESTOR COMPULSORY* TO CLAIM WARRANTY.
Note : The given Cost doesn't included product installation. With Installation Service (cost may vary as per the location and the scope of work) Installation Cost : 5000/kwp.
(Installation available in : Chennai , Vellore , Kanyakumari only)
For Details Related to Installation/ Transportation Kindly Contact Our Sales Support : 9444733147.
