10 KW ON GRID AC SOLAR SYSTEM - 15 YEARS WARRANTY
10 KW ON GRID SOLAR SYSTEM - MICROINVERTER IQ8P
THREE PHASE SYSTEM

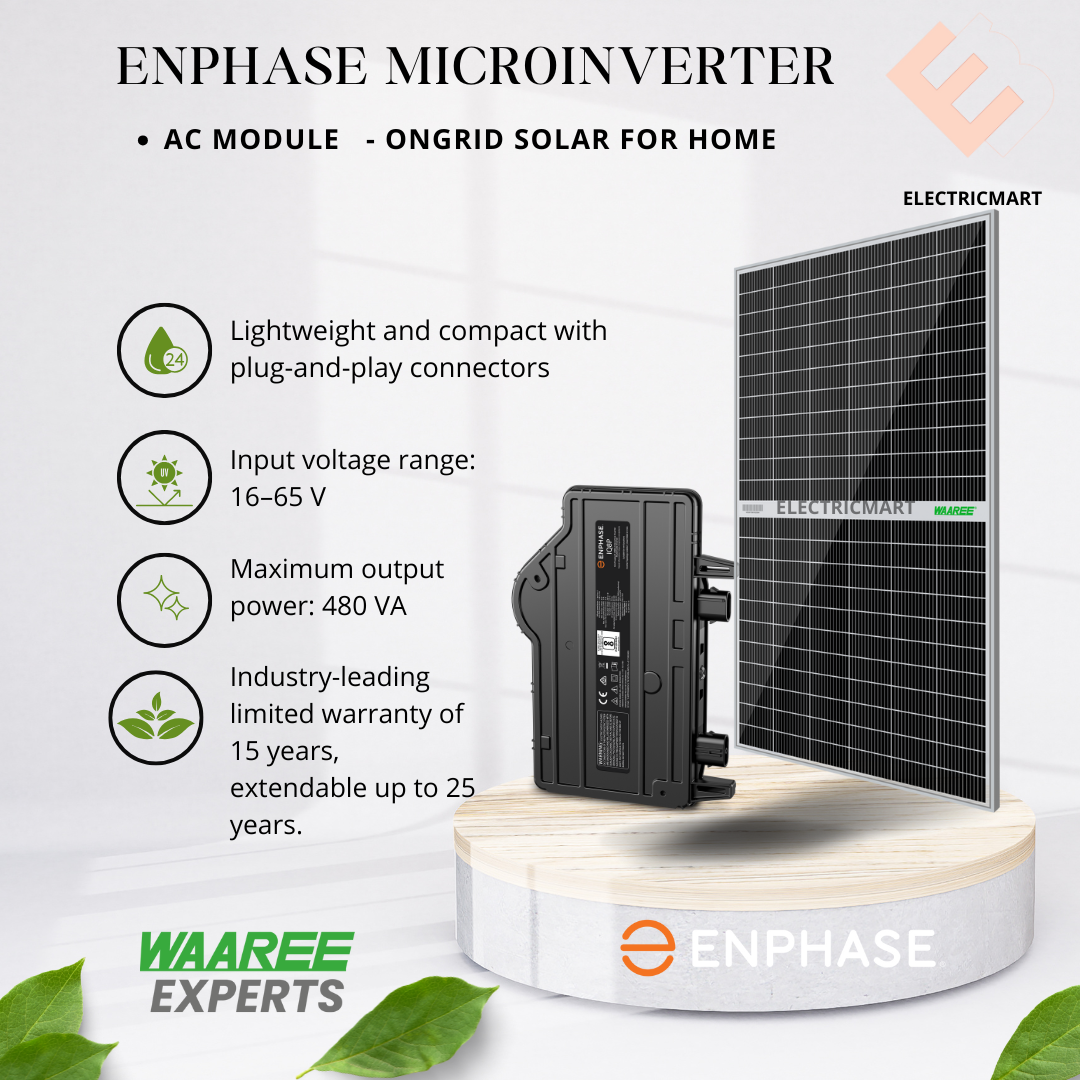

Our 10 KW ongrid rooftop solar system, engineered for maximum efficiency and reliability. This advanced system is equipped with Enphase microinverters, ensuring optimal energy production by converting solar power at the panel level for enhanced performance—even in shaded or variable light conditions.
On-Grid (Grid-Tied) Solar System :
A solar system which works with the grid is called on-grid or grid-tied solar system, there are three components in this system, such as
#1. Panels, (Topcon - Bifacial )

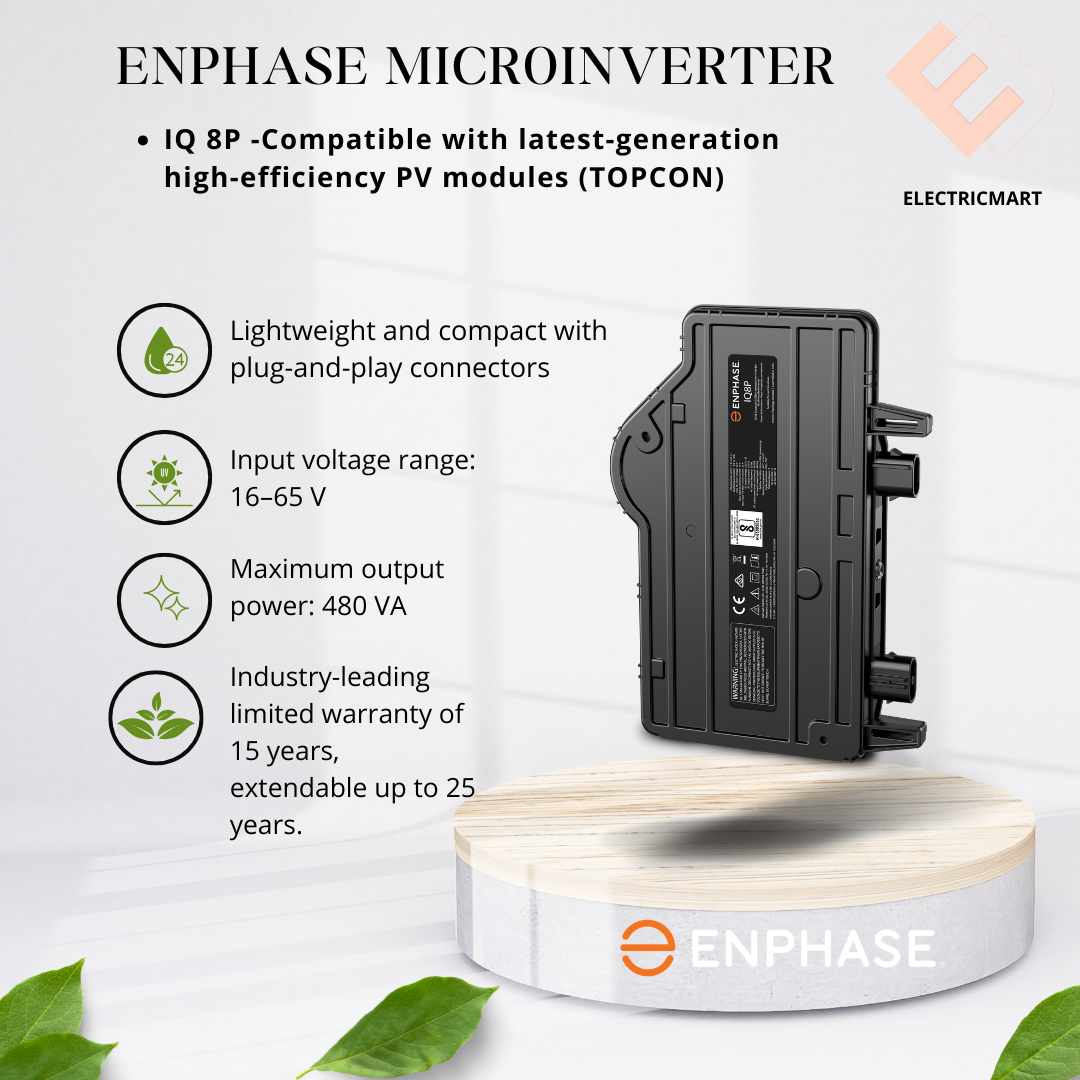

#2. Inverters, (Microinverters IQ8P)
#3. Installation Kit
#4 Envoy Monitoring System
The main purpose of installing an on-grid solar system is to save electricity bill.
Solar panel powered by enphase microinverter, with no single point of failure, and hence higher production.
Burst technology that enables production even at low light and dusk conditions.
Higher resistance against corrosion. Dustproof and waterproof microinverters.
Safest system due to AC distribution structure, rather than DC structure of string inverter systems.
Rapid shutdown technology will prevent system damage in case of grid failure.
Warranty- 25 year warranty on panels, and micro inverters. 5 year warranty on Envoy.
Advantage :
Generate power for your home and Export Excess electricity to TNEB.
4 years payback time and free electricity for next 20 years
Disadvantage :
Does not come with backup, the system does not work when there is a power cut.
Product Details
The complete Ongrid solar solution includes all neccesary components required for solar installations.
Size of System | 10 KW Ongrid Three phase |
No. of panels | 16 (585W TO 600WP) TOPCON BIFACIAL |
No. of microinverters - Enphase | IQ8P SERIES - 16N |
No. of Envoys & Q relay | 1 each |
No. of Current Transformers | 4 Nos |
No. of Q-cable drops | 16 |
Envoy Online Monitoring system | 01 |
Higher Module Efficiency, Higher Power | 20.1% Efficiency, 440 Wp+ |
Max AC Output Power per Microinverter | 460 VA |
Input Power | 350 - 460W |
Min / Max Start Voltage | 33V / 58V |
Microinverter CEC Efficiency | 97% |
STANDARD INSTALLATION INCLUDED . GST INCLUDED. (Chennai)
ENVOY MONITORING SYSTEM - INCLUDED IN THIS PACKAGE* .
This Limited Warranty will not apply in the following circumstances if the Covered Product is not registered with Enphase and (where the Covered Product is a microinverter) continuously connected to the internet through an Envoy product within 45 consecutive days following the Warranty Start Date and continuously connected to the Internet..
Note: This product requires installation by a certified installer. At checkout, you can request matching to an installer in your area.
Sales Support : 9444733147 for Customized Installation.(Chennai & Kanyakumari)
Except Chennai - kindly check availability before proceeding for payment (We have partners /teams in other districts)
Note: It does not work when there is a power failure.
Contact us today to transform your rooftop into a powerhouse!
ONLY TAMILNADU .
