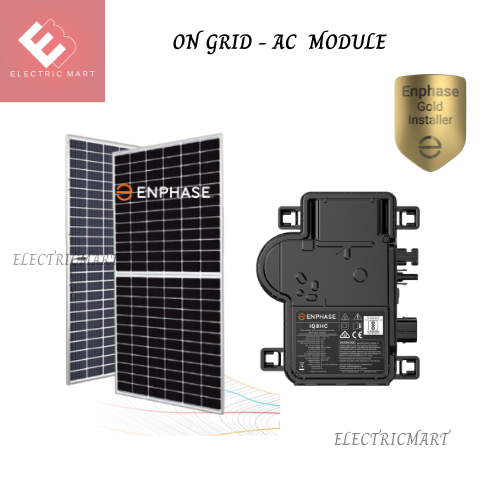

3KW ONGRID - ENPHASE IQ8 AC MODULE
3.2 KW COMPLETE ON GRID SOLAR SYSTEM - AC MODULE
3.2kW(540W) solar power generating system using the world's latest technology in a solar panel called Solar AC Module.
A 3 kW solar system generates 12-15 units a day from morning 9 am to 5 pm which is sufficient to run Refrigerator, Television, Fans and lights during the day from small 2-3 bhk home.- Enphase energized complete solution to generate 3 kW power, and 12-15 kWh energy everyday.
A solar system which works with the grid is called on-grid or grid-tied solar system, there are three components in this system, such as
- #1. Panels, (Mono- Perc half cut )

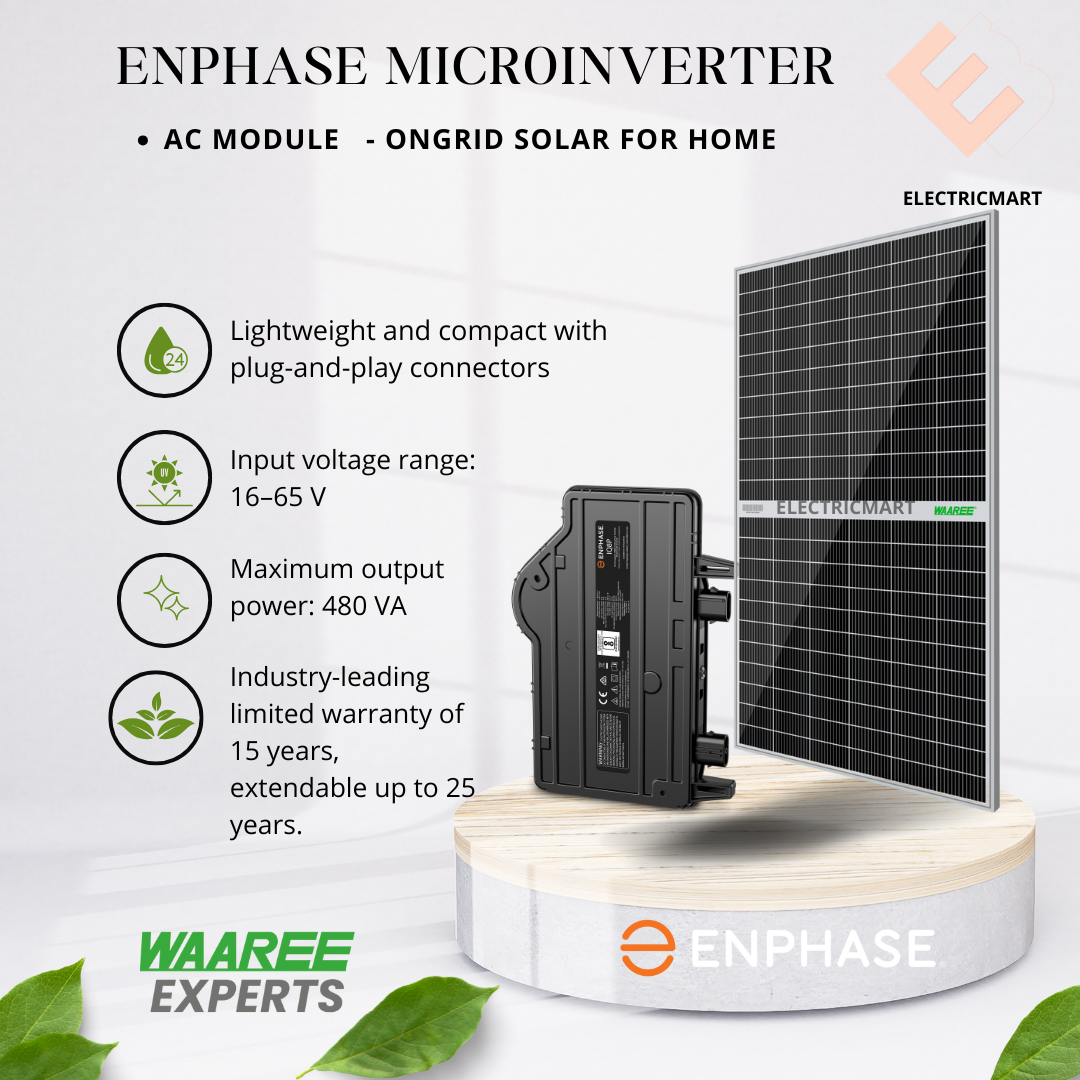

- #2. Inverters, (Microinverters Enphase IQ8)
- #3. Installation Kit
- Mono Perc panel powered by enphase microinverter, with no single point of failure, and hence higher production.
- Burst technology that enables production even at low light and dusk conditions.
- Higher resistance against corrosion. Dustproof and waterproof microinverters.
- Safest system due to AC distribution structure, rather than DC structure of string inverter systems.
- Rapid shutdown technology will prevent system damage in case of grid failure.
- Warranty- 25 year warranty on panels, and Micro-inverters. 2 year warranty on Envoy.
Advantage :
- Generate power for your home and Export Excess electricity to TNEB.
- 4 years payback time and free electricity for next 20 years
Disadvantage :
- Does not come with backup, the system does not work when there is a power cut.
Solar Panel | 540 watt Mono perc Module - Half cut (Waaree ,Vikram ,Renewsys)- 6Nos |
Space required | 280 sq.ft. |
1 Panel dimension | Length – 6.9 feet, width – 3.8 feet |
1-panel weight | 28 kg |
Micro-Inverter | IQ 8 series - 06 NOS |

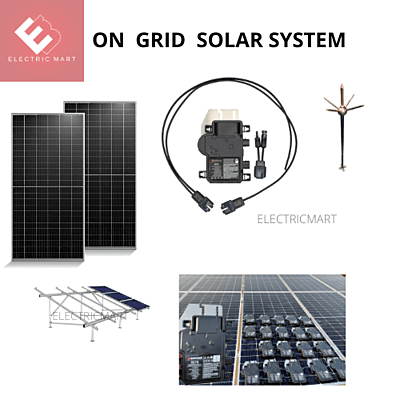

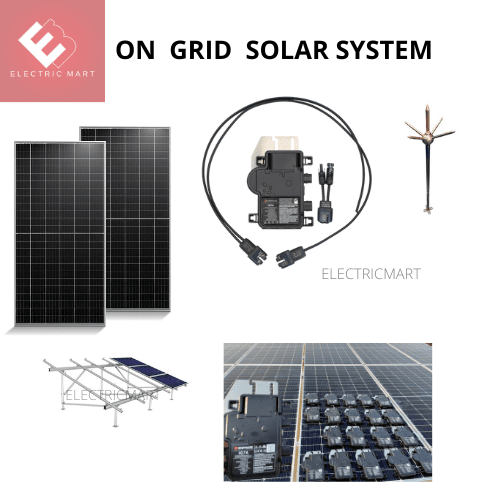

Package components :
540W solar Ac module - 06 Nos (Panel + IQ8) |
Mounting Structure - 01 No (3*2) AC Wire - 50Mtrs |
Q Cable , Connectors, ACMCB,ACDB , Earthing kit. |
Standard installation - Included, Civil work excluded |
| Microinverter Efficiency : 97% |
| ENVOY MONITORING SYSTEM - INCLUDED IN THIS PACKAGE * . |
