ELCOM
SOLAR MC4 PV CONNECTORS - SINGLE (PACK OF 10)
ELCOM - MC4 CONNECTOR
Elcom turned into a professional manufacturer of Solar Components in the year 2013 thus becoming, India’s first manufacturer of solar components. Elcom has a ISO 9001:2015 certified manufacturing facility and these products have been certified by TUV as per IEC standards.
Gst Included.
Non-returnable
Rs.600.00
Rs.900.00
Choose Quantity:
Share:
Product Details
Product Specification :

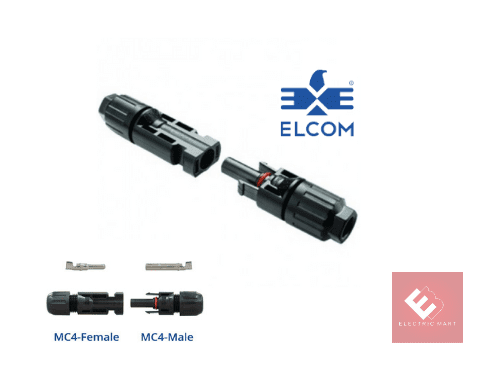

PV Cable Connectors - MC4 Single
| Connector Type | Solar PV Connector (MC-4) With Safety window |
| Color | Grey / Black |
| Brand | Elcom |
| Contact Resistance | ≤ 0.35 mΩ |
| Rated Current Ampere | 30 A |
| Rated Voltage | 1500 V DC |
| Stripping Length | 8 mm - max |
| Contact Material Degree of Protection Suitable Cable Size (VA Rating) | Copper Tinned /Silver plating IP 68 (IEC 60529) II TUV 2.5 sqmm (25A) , 4 & 6 sqmm(30A) |
| Pin Dimensions | 4.0mm |
