3KW On Grid solar Topcon DCR Combo Kit
Rooftop Solar 3kW On-Grid Solar System DCR Topcon (Single Phase). - Subsidy Eligible
ElectricMart introduces the best 3kW on-grid solar power system for homes.
Rooftop solar 3KW On-Grid Bifacial Topcon DCR Solar Kit, designed to revolutionize your home's energy landscape. This cutting-edge solar kit is specifically engineered for residential use, harnessing the power of the sun to provide a reliable and efficient source of electricity.
* Benefit from the advanced Bifacial Topcon DCR technology, which increases energy production and efficiency
* Enhance your home's value with a state-of-the-art solar energy system.
System Highlights:
Space Requirement: 3kW needs approx. 300 sq. ft. rooftop space.
Energy Generation: 1 kW generates up to 4.2 units to 5units /day (subject to climatic conditions).
Installation Assurance: Structure design & installation finalized after site survey for optimal performance.
Workmanship Warranty: 5 years warranty provided by Electricmart.
TEDA & MNRE Authorized Installer – Trusted & approved for government solar schemes.
Exclusions (Not Included in Standard Package):
Lightning Arrestor-Wires (add-on for enhanced protection) - Actuals will be calculated.
Civil Work (if required) * - Not Included
Net Meter Fees (as per EB norms) * - Paid by Customer
Structure Cost Not Included* - after site visit it will be finalized.
Non-Returnable
Subsidy Upto ₹78000 + State Government subsidy if applicable.
Installation Service : Chennai - Only. (Other district we have dealers to execute projects)
Product Details

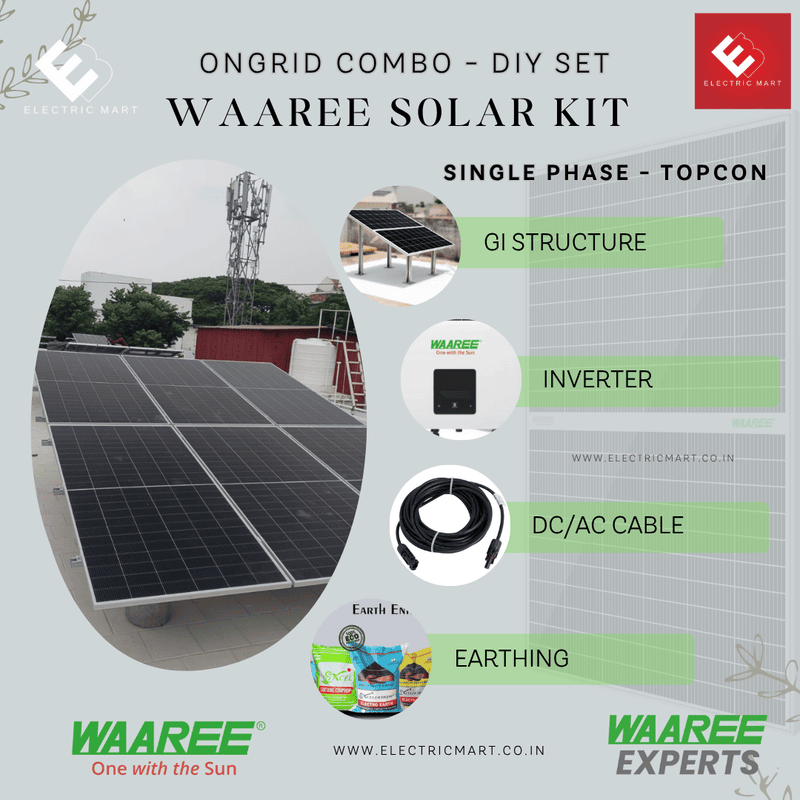

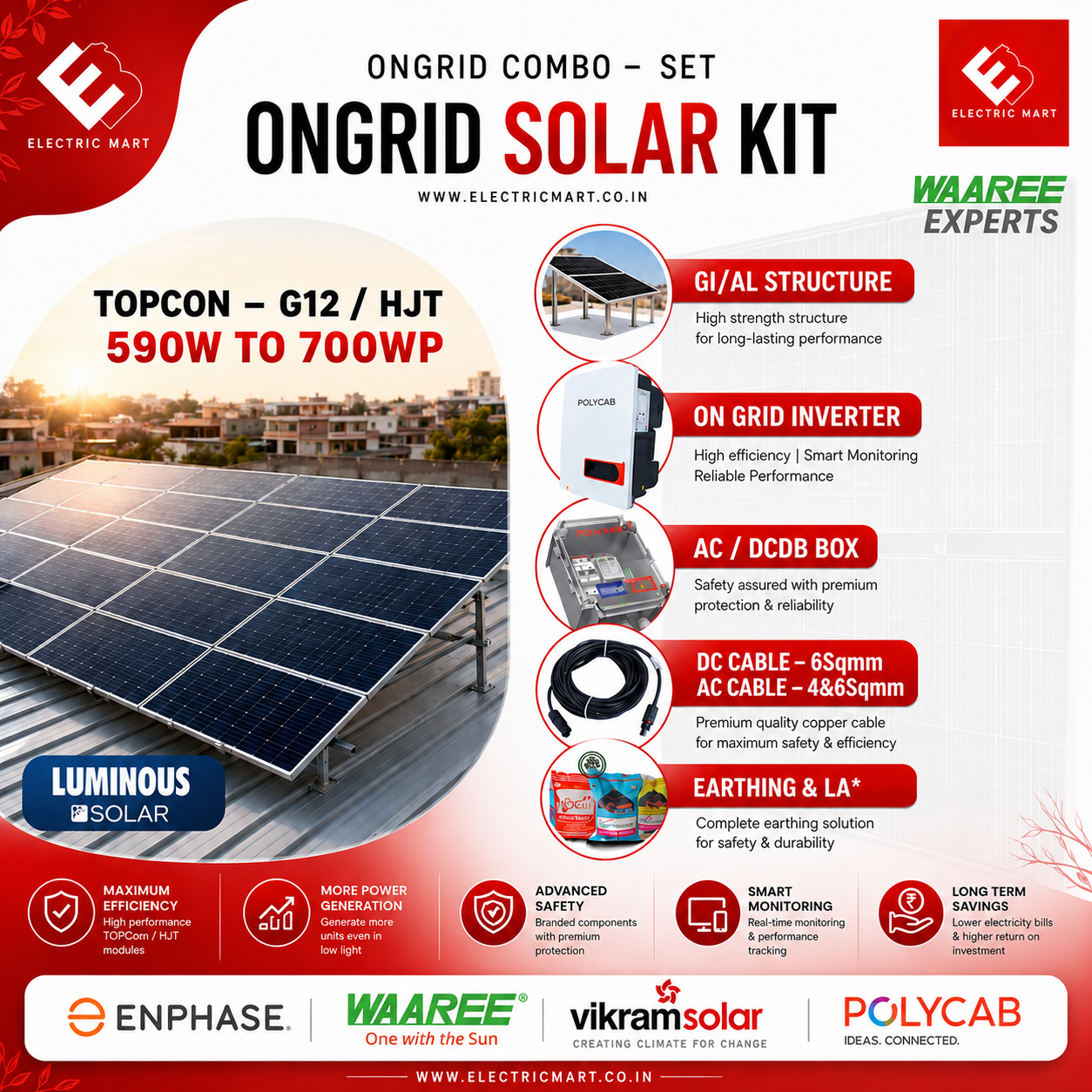

EM KIT: 3KW_BOS_DCR_TOPCON COMBO - SINGLE PHASE
Sr.No. | Component | Specification | Qty. |
1 | PV Module - Topcon (Waaree / Renewsys/ Luminous/Vikram/UTL) | Watts - 590/600/610/620W (DCR) | 5N |
2 | Inverter (On grid) - Waaree / Polycab/Luminous | On Grid Single phase Inverter 3 KVA | 1 |
3 | DCDB | DCDB 1-5 KW (1 in 1 out) With SPD 600V (Finder) & MCB | 1 |
4 | ACDB | ACDB 1-5 KW with Indicator 1 Phase SPD 1+1 (Finder), MCB | 1 |
5 | DC Cable - Red | 1C, 4/6 Sqmm Cu. DC Cable - Red (Polycab/Waacab) | 30 |
6 | DC Cable - Black | 1C, 4/6 Sqmm Cu. DC Cable - Black (Polycab/Waacab) | 30 |
7 | AC Cables | Cu. Flexible cable 4 /6 Sqmm (Polycab) | 20 |
8 | MC-4 Connectors | MC4 Compatible connectors (Pair) | 2 |
9 | Lighting Arrestor | Conventional type LA 1.2m high LA HDG (minimum 100-micron) | 1set |
10 | Earthing kit (Earth Rod) | Earthing Rod with 1.5m long Copper bonded electrode 17 mm dia (min 100-micron) | 3 |
11 | Earthing kit (Earth Chemical) | 10kg Earthing chemical fill | 1 |
12 | Earthing kit (Earth Chamber) | 6" Inch Earth pit cover | 3 |
13 | Earthing cables (For Module, DCDB, ACDB & Inverters) | 1C, 4/6 Sqmm Cu. Flexible cable, (For Modules Earthing) | 20 |
Warranty Information:
Module Warranty:12 Years Product Warranty & 30 Years Power Output Warranty / Inverter Warranty: 8/10* Years
📍 Installation & Delivery Information
Installation Service: Available within Chennai. For locations outside Chennai, installation will be managed through our authorized channel partners & dealers.
Delivery: Free delivery within Chennai. For orders outside Chennai, delivery will be arranged based on requirement and location.(additional charges applicable) - Tamilnadu Only
📞 For Installation or Delivery Queries: Call / WhatsApp us at +91 94447 33147 /044-42606876
